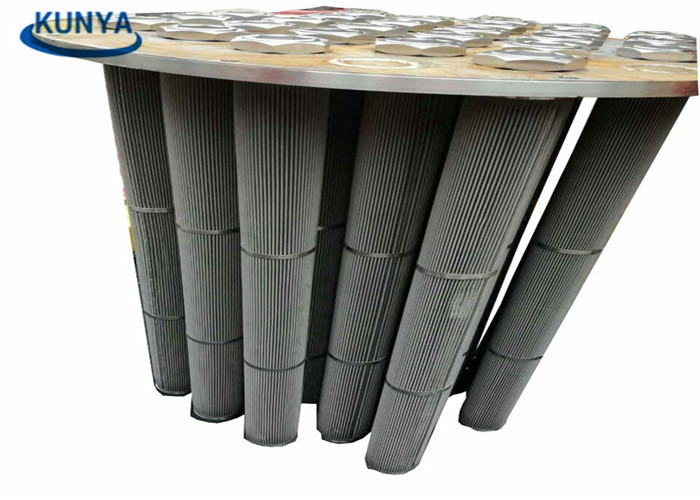

80 Micron Candle Filters Metal Mesh Stainless Steel Woven Mesh Pleated Filter
Stainless Steel Woven Mesh Pleated Filter Introductions
There are two kinds of filter material . One is stainless steel sintered fiber web ,
Another is stainless steel weaving wire mesh.
Effective Filtration Area (per 10” length )
Pleated cartridge : 1.40ft2 (0.13m2)
Cylindrical catraidge: 0.55ft2 (0.05m2)
Gaskets and o-rings :
EPDM as standard , Nitrile ,PTFE , silicone , Viton and PFTE coated viton available on
request or by process selection .
Cartridge End Fittings :
226 Fitting , 222 Fitting , Double open ended Fitting , Single open ended Fitting ,
Threaded End Fitting , 1’’,1/2’ NPT and so on.
Stainless Steel Woven Mesh Pleated Filter Specifications
| Material | SS304, SS316, SS316L. |
| Filter precision | 1 - 300μm |
| Filter efficiency | ≥95% |
| Working pressur | 30Mpa |
| Working temperature | ≤600°C |
| Main filter media | stainless steel sintered fiber web and stainless steel wire woven cloth |
| Installing form | standard (using o-ring to seal), thread, tie rod, flange, fast interface
|
Stainless Steel Woven Mesh Pleated Filter Feature
1).high flow, high precision
2).high porosity, permeability, pressure drop very low
3). excellent mechanical strength, resistance to high pressure up to 200Kg
4).easy to clean, backpulsing
5).corrosion resistance, high temperature resistance
6) .good processing performance, folding, welding, adhesive
7).design flexibility
Stainless Steel Woven Mesh Pleated Filter Informations
| Product Type | Material | Micron | Out Diameter | Length | adapter | O-rings | Filter Media |
| Pleated Type | SS304 | 1,3,5, 10,15, 20,25, 30,40 ,50,100 etc | 30mm | 5" | Thread | Silicon | SS wire mesh |
| SS304L | 50mm | 10" | DOE | Buna-N | Sintered Fiber |
| SS316 | 60mm | 20" | 226 | Viton | Sintered mesh |
| SS316L | 65mm | 30" | 222 | EPDM | |
| Other | 70mm | 40" | SOE | | |
Note: 1. the above options are freely combined .
2.It also can be customized according to your requirements.
